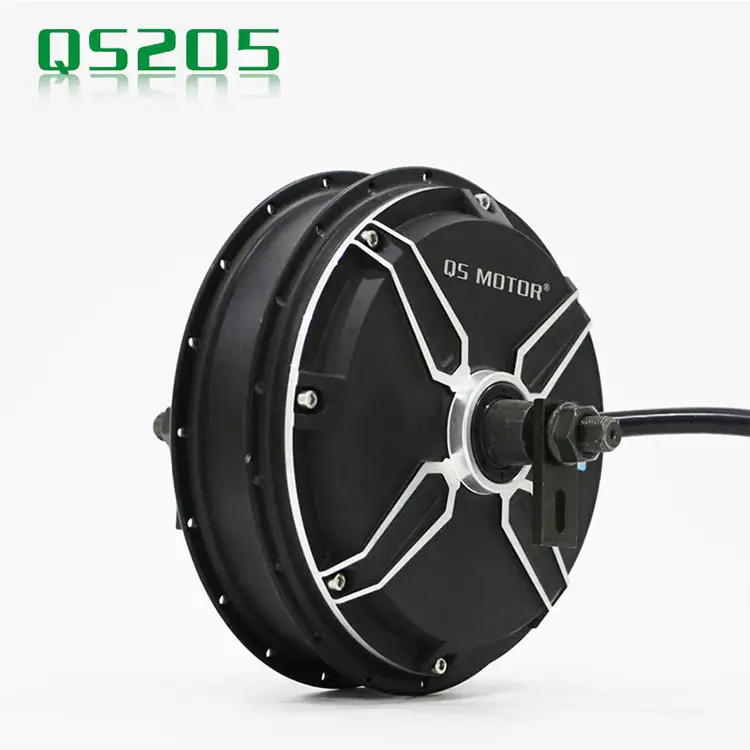

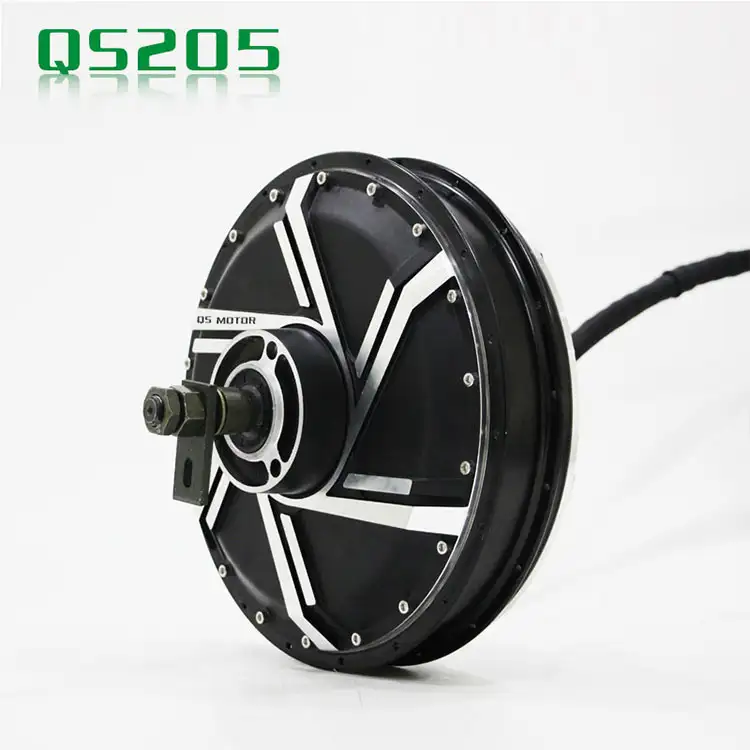

72V 3000W 50H QS motor electric bike direct drive hub motor

Product parameters

72V 3000W 50H QS motor electric bike direct drive hub motor

This electric bike motor packs a punch with its 72V 3000W 50H QS direct drive hub motor, providing powerful performance and reliability. Delivering excellent torque and top speed, this motor is a top choice for electric bike riders.

Motor TypeBLDC

Rated Voltage72V

Speed80KPH

Max Torqueapprox 182N.m

Description

Get A Quote

More Products

Motor Type: BLDC Permanent Magnet Outer Rotor In-Wheel Hub Motor With Hall Sensor
Brand: QS Motor,QSMOTOR
Motor Design: Double axle without rim (not integrated), 36 spoke holes, OD 4.2mm
Matching Rim size: 24inch, 26inch E-Bike Wheel, 17inch, 18inch, 19inch moped wheel.
Magnet Height: 50mm, 16 pole pairs
Stator: Aluminmum Core
Rated Power: 3000W (14000W peak in few seconds)
Rated Voltage: 72V as default (48V-96V, optional)
Speed: 80KPH as default (24-120KPH, optional)
kV: 6.3/7.3/8.1/8.3/9.0(as default)/10.6/11.4/13.3/14.3/16.3/17.7 etc.
Max Torque: approx 182N.m
Max Efficiency: 86-91%
Continuous Battery Current: 52A (72V)
Peak Battery Current: 104A (72V)
Suggest Peak Phase Current: 196-245A (depend on the kV)
Thermic Probe: KTY83/122 (as default, optional)
Working Temperature: 70-120℃ , peak 150 ℃
Brake type: Bike Disc brake, PCD6*44mm(as default)
Drop-outs/Rear Fork Width for installation: 150-154mm
14mm english thread length for single/3 speed freewheel
10mm axle flats
Dual Hall Set with waterproof connectors
10mm² Cross Section of Phase Wire (not include insulation layer)
Hall Sensor Phasing angle: 120 degree
Waterproof Grade: IP54
Color: Black (as default), White/Luminous (extra $5.0)
N.W./G.W.: 12.5kg/14.0kg Package Dimension: 34cm*34cm*33cm/piece
